Product Overview

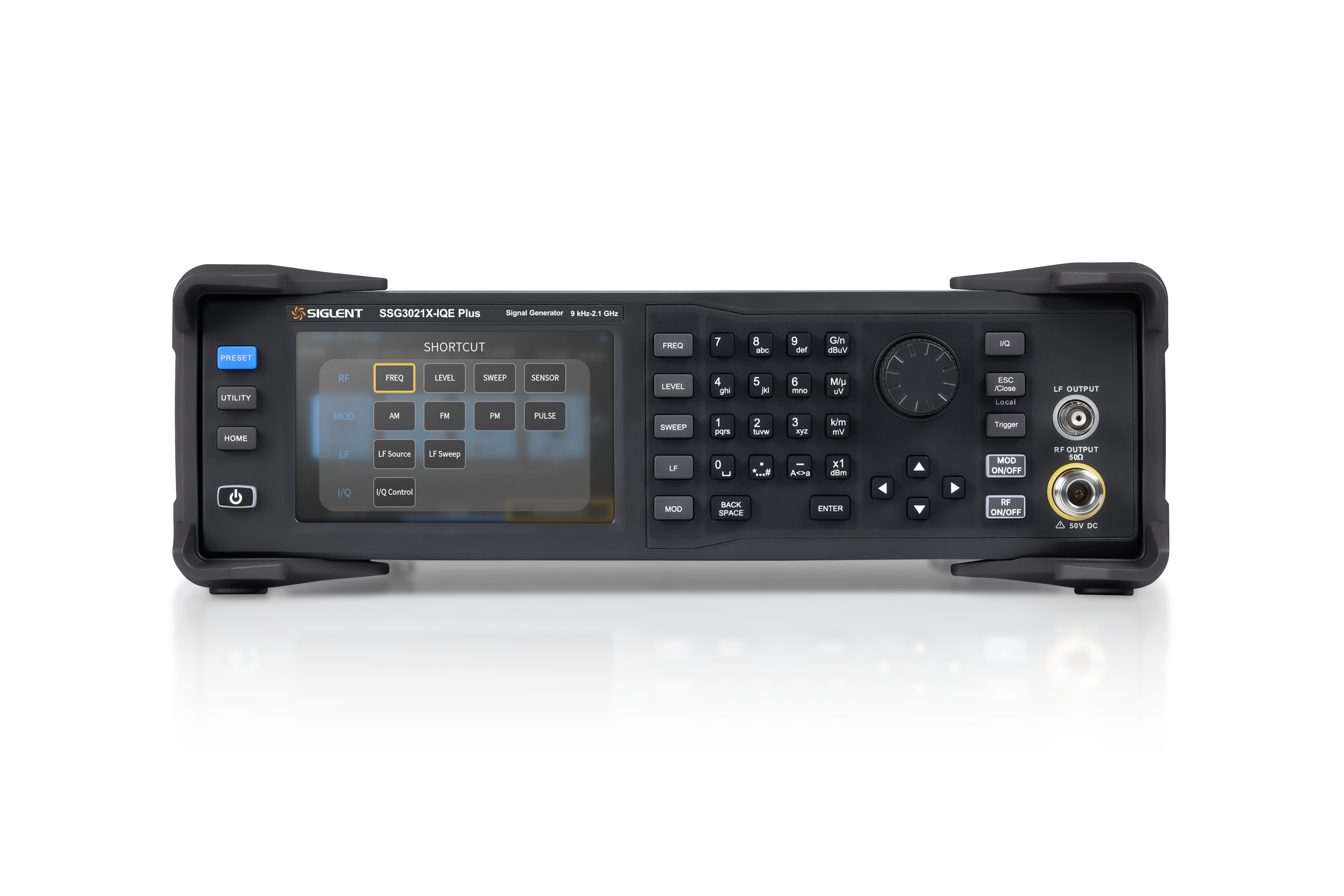

SSG3000X Plus series RF signal generators, covering a frequency range of 9 kHz to 3.2 GHz with a maximum output level of +20 dBm. Featuring an optional high-stability OCXO reference source, excellent phase noise, and significantly improved pulse signal fidelity, the series delivers pure signal output and stable performance. It comes standard with AM/FM/PM analog modulation, pulse modulation, and USB power meter control, supports custom pulse sequences and external IQ modulation, and is equipped with a 5-inch capacitive touchscreen. Well suited for RF component characterization, research and development, manufacturing, education, and maintenance applications, the SSG3000X Plus provides a pure, stable, and cost-effective professional RF signal solution.
| Model | SSG3032X –IQE Plus | SSG3032X Plus | SSG3021X –IQE Plus | SSG3021X Plus |
| Frequency Range | 9 kHz ~ 3.2 GHz | 9 kHz ~ 3.2 GHz | 9 kHz ~ 2.1 GHz | 9 kHz ~ 2.1 GHz |
| Frequency Resolution | 0.01 Hz | 0.01 Hz | 0.01 Hz | 0.01 Hz |
| I/Q Modulation | Included | Not Supported | Included | Not Supported |
| Max output power | ||||
| Phase Noise | <-117 dBc/Hz@1 GHz，offset 20 kHz （typ.） | <-117 dBc/Hz@1 GHz，offset 20 kHz （typ.） | <-117 dBc/Hz@1 GHz，offset 20 kHz （typ.） | <-117 dBc/Hz@1 GHz，offset 20 kHz （typ.） |
| I/Q Bandwidth | 100 MHz | – | 100 MHz | – |
Key Features
- Frequency up to 2.1 GHz/3.2 GHz
- Level output from -110 dBm to +13 dBm
- Phase noise: -117 dBc/Hz @ 1 GHz, 20 kHz offset (typ.)
- Optional high-precision OCXO reference
- Standard AM/FM/PM analog and pulse modulation
- External IQ modulation with 200 MHz RF bandwidth
- USB power meter control
