Product Overview

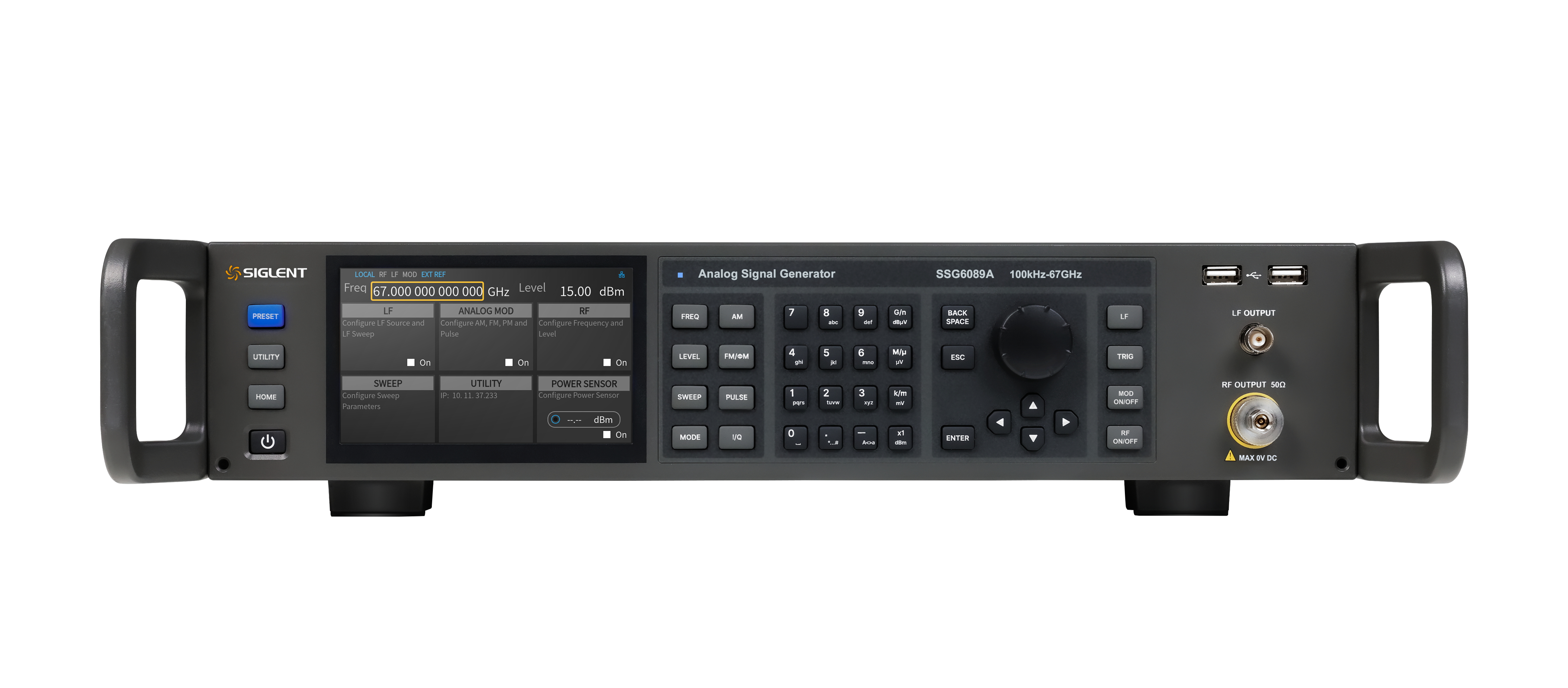

SSG6083A / SSG6085A / SSG6087A/ SSG6089A microwave signal generator’s output frequency range from 100 kHz to 13.6 / 20 / 40 / 67 GHz, supports AM and pulse modulation, pulse sequence generator, power meter control and other functions. With standard OCXO reference hardware module inside ensures highprecision and high stability signal output. It is designed for communication, aerospace and other fields. And it is suitable for various application scenarios such as R&D and production.
| Model | SSG6089A |
| Frequency Range | CW MODE 100 kHz-67 GHz |
| Frequency Resolution | 0.01 Hz |
| I/Q Modulation | Not Supported |
| Max output power | +22 dBm |
| Phase Noise | -149 dBc/Hz @1 GHz, offset 10 kHz (typ.) with option SSG6080A-LPH2 |
| Display | 5-inch capacitance touch screen, RGB (800*480) |
